Encompass 1i Handheld

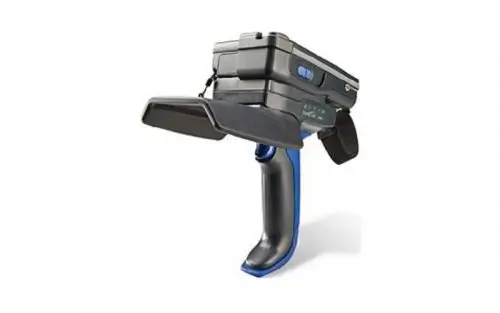

The Encompass® 1i Handheld Reader combines TransCore’s IP30 TC RFID Scan Handle and the Intermec CN3x Mobile Computer (models CN3e and CN3f). The handheld reader is ideal for radio frequency identification (RFID) applications requiring an extended read range, multitag sorting, and memory capacity not provided by proximity technology.

TransCore’s E1i handheld reader is targeted at transportation-specific applications. The E1i was designed expressly for electronic vehicle registration and compliance, rail, fleet, electronic toll collection, government, airports, and parking/security access applications. The handheld reader allows users to read and store tag information eliminating time-consuming and error prone tag data entry tasks.

The E1i handheld reader offers users the capability of verifying tag read exceptions encountered at fixed-reader RFID sites, such as commercial, private, government, and airport parking facilities. The handheld reader’s typical read range is 3.5 to 12 feet (1.1 to 3.7 meters) depending on the tag type being read. The handheld reader can read from the following tag types: TransCore eGo and eGo Plus in Super eGo (SeGo) mode RFID tags; and Association of American Railroads (AAR); American Trucking Associations (ATA); and International Organization for Standardization (ISO) tags, whether programmed as full frame or half frame. Multitag sorting, or filtering, allows the user to specify groups within a population of eGo or eGo Plus (SeGo mode) tags to be selected and read.

The Encompass 1i handheld reader is designed for easy, comfortable RFID reading, yet it is rugged enough to withstand harsh working environments. Phone style (123) and 10-key (789) numeric keypads are available on all models and alpha keypads are available on select models. The rechargeable lithium-ion battery pack powers the RFID reader for an entire shift.

Reads the following protocols:

  • ATA full-frame and half-frame
  • TransCore Super eGo®
  • eGo (ISO 18000-6B)
  • Wiegand

Product Features:

  • Portable multiprotocol reader and mobile computer
  • Suitable for electronic vehicle registration and compliance, rail, fleet, electronic toll collection, government, airports, and parking/security access applications
  • Ideal for exception-based scanning
  • Reduces errors and redundant manual data entry
  • WiFi 802.11 b/g standard
  • Bluetooth standard
  • Selectable 10-key or phone style numeric keypads
  • 1D/2D area imager standard
  • Wide area networking optional
  • TransCore supplied software1
  • Tag/reader demonstration
  • Application programmer’s interface
  • Software developer’s kit
  • Rated for use in harsh operating environments
  • Components provided in convenient kits for easy ordering
  • Optional UL listed non-incendive models
  • Ideal for transportation applications requiring an extended read range, multi-tag sort, read capability, and memory capacity not provided by proximity technology
  • Portable multi-protocol reader and mobile computer
  • Reads eGo tags
  • Reads eGo Plus (SeGo mode) and ATA/ISO tags
  • Rechargeable lithium-ion battery
  • Replaces the Encompass E1
